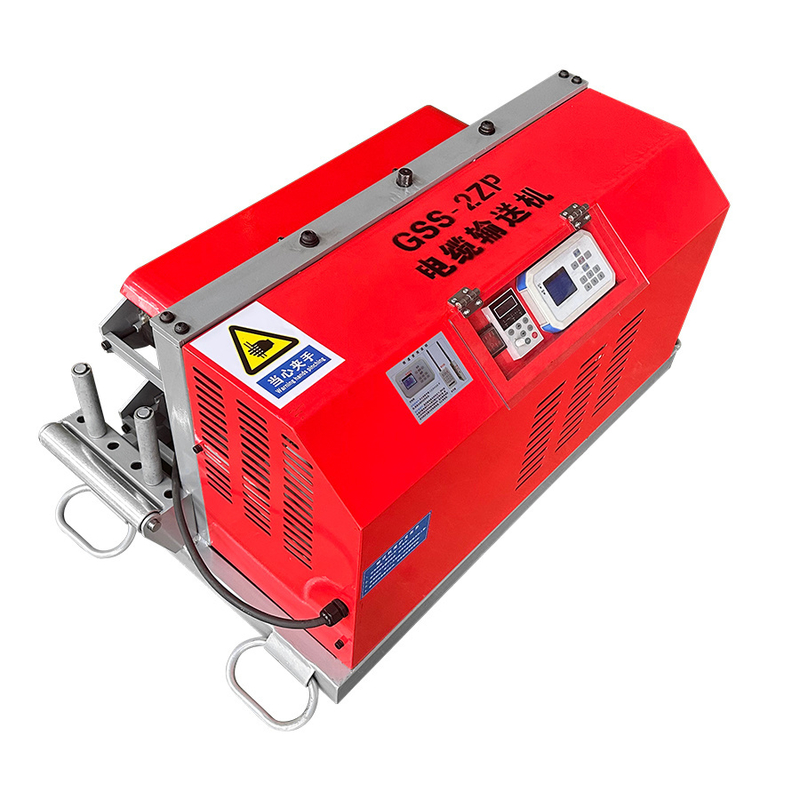

GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter

Name: GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
Brand: Changshu Xinya Machinery Manufacturing Co., Ltd.
SKU: GSS-2ZP
Price: 1,500.00 USD
Availability: InStock

نام تجاری:	XINYA
شماره مدل:	GSS-2ZP
موق:	1
قیمت:	USD1000-USD2000
زمان تحویل:	7-15 روز
شرایط پرداخت:	L/C ، T/T ، Western Union

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

محل منبع:

جیانگسو ، چین

کشش خط:

600 کیلوگرم

قطر کابل:

10-180 میلی متر

سرعت کشیدن:

0-26 متر در دقیقه

موتور الکتریکی:

3 کیلو وات

ابعاد بزرگ:

980x530x480mm

وزن:

140 کیلوگرم

گیره:

بیش از 2.7kn

جزئیات بسته بندی:

چوب

برجسته کردن:

600 kgs cable pulling machine,cable winch puller 10-180mm diameter,GSS-2ZP cable puller with warranty

cable winch puller 10-180mm diameter

GSS-2ZP cable puller with warranty

توضیح محصول

Intelligent Cable Pulling Machine Cable Conveyor for Underground Electrical Laying Model GSS-2ZP

The GSS-2ZP intelligent cable conveyor represents the latest generation of cable laying equipment, designed for efficient long-distance and large-section cable traction and transportation. This machine assists construction teams in safe and productive cable installation, particularly in challenging environments such as tunnels, pipelines, and bridges.

Product Overview

Advanced double-track transmission system ensures stable traction across various cable specifications
Features wear-resistant rubber conveyor belt/track with non-slip surface for superior cable grip
Modular design allows multiple units to operate in series for ultra-long distance installations

Key Features

Compact yet powerful design with excellent thrust capability
Lightweight construction for easy maneuverability in confined spaces
Operates as standalone unit or synchronized with multiple machines via control box
Rubber-cast conveying wheels prevent cable surface damage
Adjustable center distance accommodates various cable diameters (10-180mm)
Double caterpillar drive system protects cable insulation integrity
High-strength DRC caterpillar construction ensures uniform force distribution
Quiet operation with minimal temperature rise during extended use
Engineered for easy maintenance and serviceability

Technical Specifications

Item	Value
Model	GSS-2ZP
Power	Electric engine 3KW 380V 3-phase
Cable Diameter	10-180mm
Dimension	980×530×480mm
Pulling Speed	0-26m/min
Clamp	≤2.7KN
Pulling Force	6KN
Weight	140kg
