| Brand Name: | XINYA |
| Model Number: | DSJ-180 |
| MOQ: | 1 |
| قیمت: | $1,000-2,000 |
| Attribute | Value |
|---|---|
| Power Source | Electric |
| Application | Cable feeder |
| Transmission Type | Electric/communication cable |
| Usage | Transmission cable |
| Applicable Cable Diameter (mm) | 25-150/25-180 |
| Pulling Force (KN) | 9 |
| Speed (m/min) | 6 |
| Voltage | 380V |
| Power | 1.5kw*2 |
| Weight (kg) | 200 |
| Dimension (mm) | 1000*530*400 |
| Capacity | 9KN |

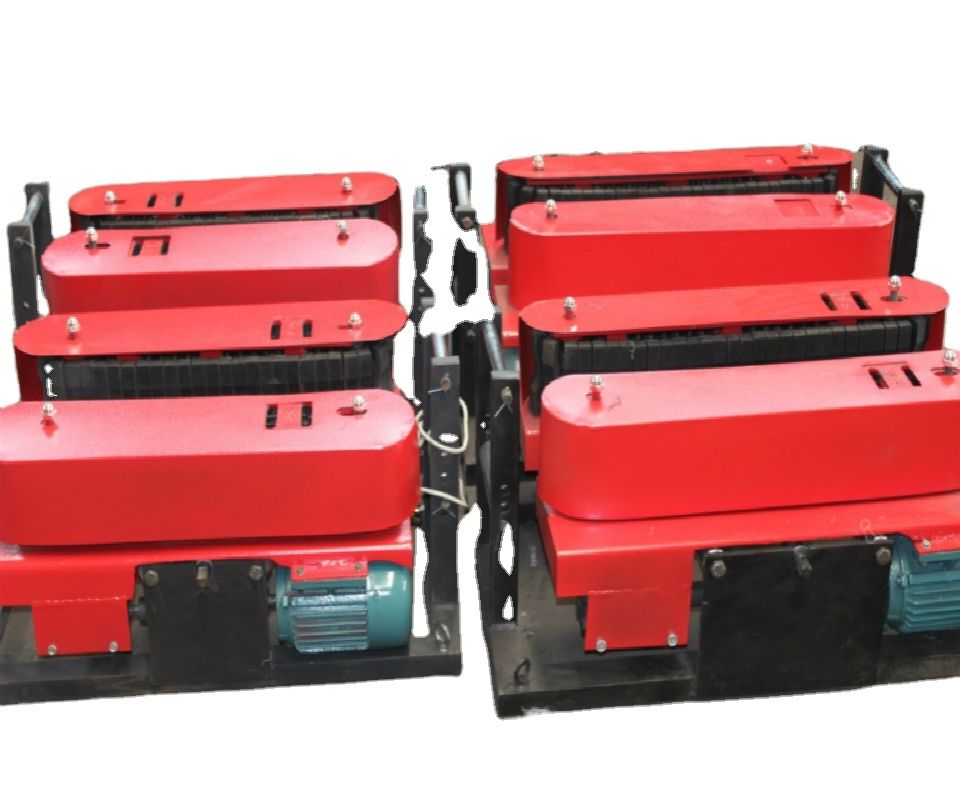

The Manufacturer DSJ-180 electric cable conveyor belt is a specialized machine for laying and conveying electric and communication cables. Featuring a double shaft driving structure, it applies conveying force and gravity in two directions to protect cable insulation. The high-strength wear-resistant rubber composite crawler ensures uniform force distribution and durability.
The electric control system can be provided with DSJ supporting products and winding wheels according to user requirements (total control box or control box options available).
| Model Type | DSJ-180 |
|---|---|
| Applicable Cable Diameter (mm) | Φ25-Φ180 |
| Pulling Force (KN) | 9 |
| Speed (m/min) | 6 |
| Power | 1.5KW*2 |
| Weight (kg) | 200 |
| Dimension (mm) | 1000*530*400 |
Our production facility maintains complete equipment and a professional team to manage the entire process from manufacturing to shipment. Every unit undergoes 100% testing before delivery to ensure superior quality and performance.
